3D and high accuracy view of your surfaces

Area of expertise

Metrology - calibration

Surface topographical measurements on every material, with or without contact


YOUR EXPECTATIONS

You want to precisely characterize and control the surface of a complex shape part in order to:
• control manufacturing parameters, for instance grooves, low-amplitude defects, bottom of cavities, coating thickness
• record the depth of corrosion defect
• follow the evolution of surface wear
• understand a tightness failure
• measure a material which does not allow contact (plastic material deformation, scratches)
You need advice to identify the most relevant measurement criteria.

OUR SOLUTIONS

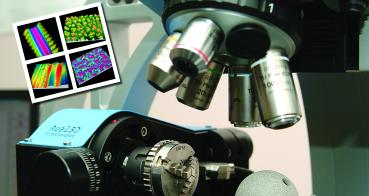

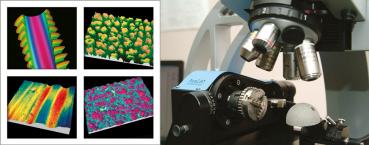

• compliant with the current ISO 25178 standard and the future standard for 3D surface measurement which defines criteria for topographic measurement, our CLI2000 measurement station uses various with-or-without-contact sensors and make fine measurements with a very high resolution (only a few nanometers). Measurement volume is 200x200 x300mm. The topography of the part is shown in real-time.
• the asset of 3D: 3D simplifies your understanding of phenomena related to surface state: scratches, shocks, flatness, burrs...
• data can be rendered in the form of tables and charts, which enables you to quickly analyze results

YOUR BENEFITS

• As independent, neutral and objective experts, Cetim specialists guarantee the best method and quick results
• you have access to Cetim’s unique metrology equipment level and also resources in traditional or innovative non-destructive testing
• you can enrich your expertise with an analysis and redesign work in collaboration with Cetim experts

Our other services



Our references

A better understanding of surface quality thanks to 3D

( Markem-Imaje )

Modelled on beauty

( Fermob)

Control of materials, products and equipments

Cetim offers you its expertise in non-destructive testing and measurements, from simple part inspection to process instrumentation including the management of measuring instrument tools, in order to meet each requirement, whether related to products or processes.
Your NDT (Non-Destructive Testing) operators can also obtain COFREND certification in one of the 2 Cetim examination centres (Senlis and Nantes, France).
