3D metrology for circular parts

Area of expertise

Metrology - calibration

Get a high-precision 3D-view of your circular parts (shape defects, cylindricity, circular roughness)


YOUR EXPECTATIONS

You want to characterize the state of a circular part or cylinder after machining (manufacturing parameters) or use (record corrosion defects depth, understand a tightness or wear defect) or need to choose most reliable control parameters. You need to:

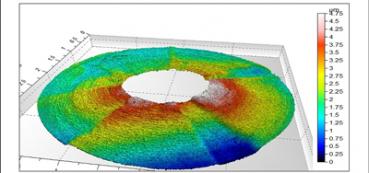

• use 3D-cylindric mapping
• measure circularity parameters, cylindricity, vertical or horizontal straightness, parallelism, simple or multiple flatness, perpendicularity, concentricity or excentricity, coaxiality, partial arc circularity or flatness (linearity)
• measure circumferential surface state (for example on sealing surfaces)
• perform an harmonic analysis

OUR SOLUTIONS

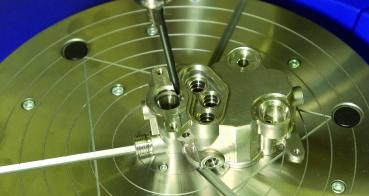

We bring you a metrology service on a Talyrond 365 machine belonging to the new range of circularity measuring instruments who are renowned for their accuracy and reliability (radial accuracy <0.02µm, cone error 0.0003 µm/mm, calibration up to 18000 points in rotation and 200000 points in horizontal straightness)
The testing is non-destructive

YOUR BENEFITS

• Cetim's metrology experts guarantee the method used and best-time results
• our technical center is equipped with many complementary measuring means

Control of materials, products and equipments

Cetim offers you its expertise in non-destructive testing and measurements, from simple part inspection to process instrumentation including the management of measuring instrument tools, in order to meet each requirement, whether related to products or processes.
Your NDT (Non-Destructive Testing) operators can also obtain COFREND certification in one of the 2 Cetim examination centres (Senlis and Nantes, France).
